MIXING PITCHER
-
Registration No.: TR2014/05384
Assignee: Irak Plastics
-
DESCRIPTION

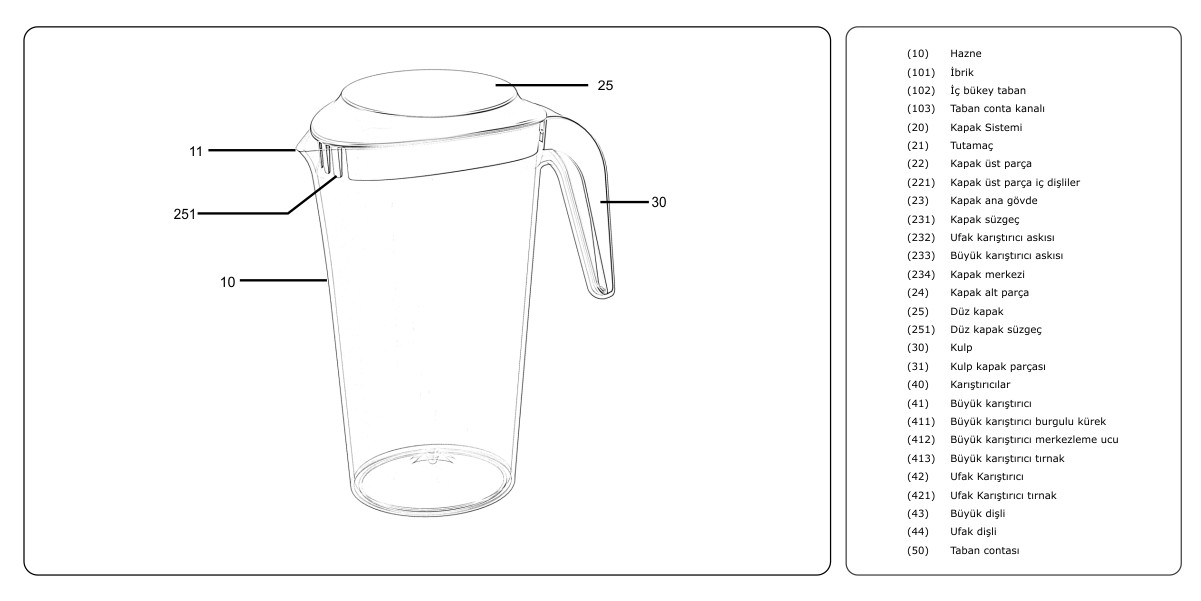

Mixer Pitcher (MP) consists of the following main components and systems:
- Reservoir (10)
- Cover System (20)
- Handle (30)
- Mixers (40)

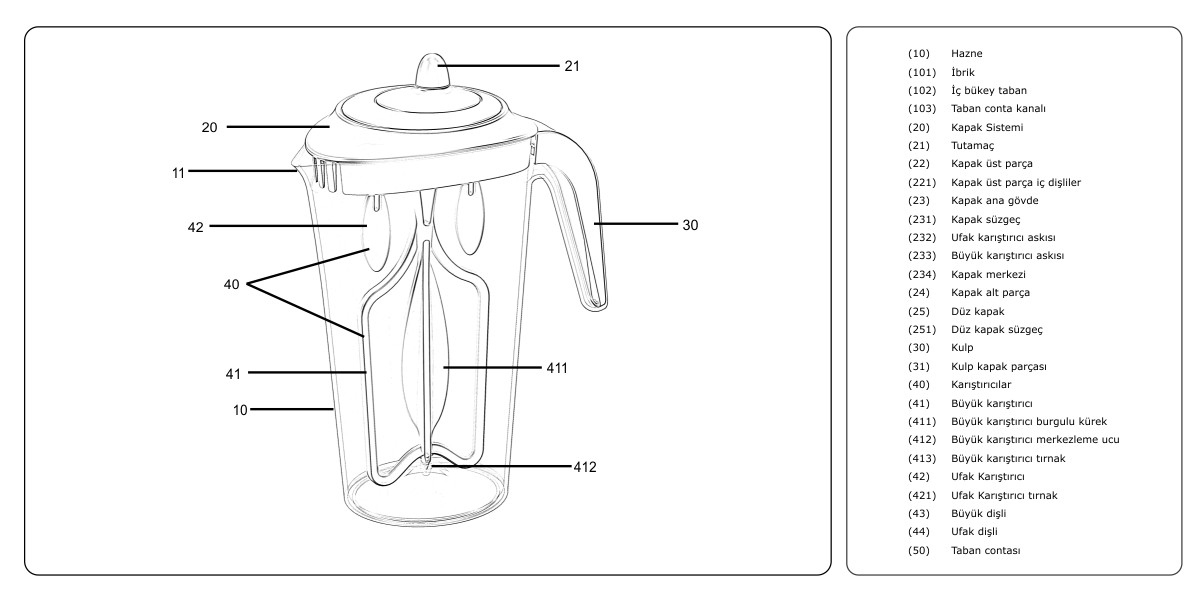

MP is mixing pitcher that consists of the reservoir (10), the cover (20) and the mixing system with multiple blenders. The blenders are actuated by the dome shaped stirring handle (21) which is positioned onto the top of the cover. The mixing system (40) has multiple blenders, located on different levels; which ensures effective and homogenous stirring on the surface and on the bottom of the beverage. The reservoir handle cover is mounted (31) is mounted onto the angled handle extension (31) of the reservoir and ensures an ergonomic grip. In addition to the mixing cover system, a separate flat cover (25) is added to the group. This way a cheaper version of the pitcher can be presented to the market without the mixing system.
Registration:
TR2014/08973
