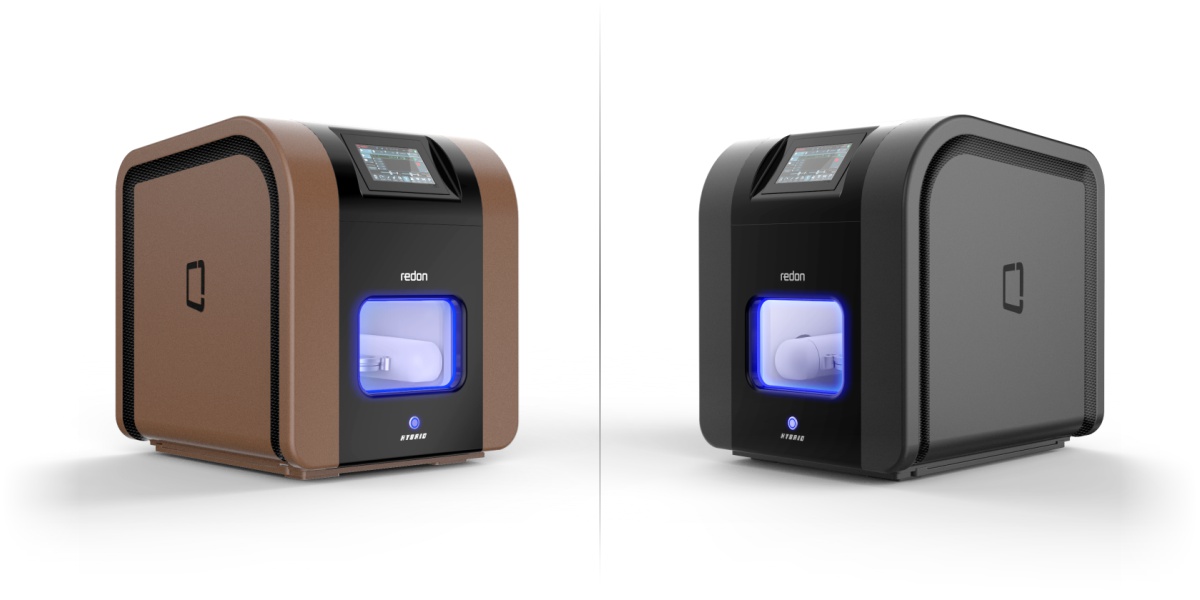

With its compact and portable design, the REDON Hybrid is a CNC milling unit, designed for the dentist clinics and laboratories. With its quality and speed characteristics, Hybrid produces a faster and more precise production than its competitors thanks to the mono-block cast body and the digital servo motor structure on all axes. Providing wet and dry running performances, the most impressive feature of the Hybrid is its high performance regardless of the material.
Screw Shaft: 8μm positioning accuracy for precise production / 10% dynamic preloading for heavy duty rigid operation / Long maintenance intervals and automatic grease lubrication
Linear Sledges: Super sensitivity class for smooth movements / High preloading for heavy duty rigid operation / Serviceability and long maintenance intervals
Spindle: High speed spindle capable of providing constant torque up to 60,000 revolutions / Capability to process CoCr and Titanium due to high power and torque / Milling from 0.2 mm to 3 mm diameter
CNC: Digital servo motors with absolute encoder in all axes / Ability to perform precise work on 5 axes thanks to advanced tool path control / Tool damage control
Control Board: Easy to use touch panel / Multi-language support / User friendly
Cooling system: Dry and wet cutting capability for all material types / Fast switching between dry and wet cutting systems / Special cooling combinations
Machine Structure: High machining rigidity in heavy work such as Titanium and CoCr thanks to monoblock cast body / Space-saving thanks to its compact design
Magazine: Automatic tool changing / 12 tool sets for all operations / 1μm precision tool measuring sensor (IP67)
Integrated CAM System: Open system CAM software integrated with Redon / One-touch CAM / Multi-machine control with single CAM
Maintenance: User-friendly design and ease of maintenance / Long maintenance periods / Remote service possibility / Automatic calibration and automatic cleaning
Interface: With touch panel / Tablet control / Indoor camera / Remote control
Doors: Automatic doors / Independent right and left doors / Isolation / LED indicators around the door
Processing Area: Monoblock cast iron swing / Team Magazine / Lighting / Isolation
